v1.0.5 / 01 jan 10 / greg goebel / public domain
* The British were leaders in aircraft design through the Second World War, but suffered a slow decline in their aerospace and defense capabilities after the war due to economic constraints and political indifference. In recent decades, British aerospace and defense manufacture has revived, aggressively exporting military aircraft and advanced weaponry. One of their biggest successes is the British Aerospace (BAE) "Hawk", a trainer and light combat aircraft that has been adopted by many of the world's armed services, including the US Navy. This document provides a history and description of the Hawk.
* In the early 1960s, the British Royal Air Force (RAF) was operating two jet trainer aircraft: the Hawker Hunter T.7 two seat side-by-side trainer, and the Folland Gnat T.1.
The Hunter trainer was well liked, but it was also expensive to operate; had limited endurance; and its side-by-side seating arrangement was increasingly seen as outdated. Side-by-side seating is well suited for primary training, since it gives the instructor a close view of what the student pilot is doing, but is poorly suited to advanced training, since it creates a cockpit environment that is dissimilar to that of the single-seat aircraft the student is presumably being trained to fly.
Although the Gnat T.1 was appreciated for its agility and good handling, and achieved recognition as the mount for the RAF Red Arrows aerobatic display team, it suffered from high maintenance overhead; a cramped cockpit that could not accommodate tall pilots, and left the flight instructor straining to see forward through the back of the student's head; and no weapons training capability.
In 1964, the RAF released a draft requirement for a trainer to replace both the Hunter trainers and the Gnat T.1, with the designation "Air Staff Target (AST) 362". Transition to the new trainer was to begin in the mid-1970s. In step with the spirit of the times, the new trainer was to have a top speed of Mach 1.5. It hadn't been realized yet that the benefits of a supersonic trainer did not really outweigh the drawbacks of higher purchase and operation costs.
Then international politics intervened. The French were also interested in a new trainer to replace their Lockheed T-33 "T-birds" and Dassault Mystere IVs, and a round of typically complicated Anglo-French negotiations followed. These discussions led off in one direction to the Anglo-French SEPECAT Jaguar, which was originally conceived as a trainer and light strike aircraft. Ultimately, the Jaguar became very much a competent strike fighter, but was simply too much aircraft for flight instruction. Tandem seat Jaguars were built, but they were used for operational conversion, not flight instruction.
Another offshoot of this round of discussions were a series of proposals made to the RAF in 1968 by Hawker Siddeley Aircraft (HSA) for a jet trainer. By this time, the RAF's focus had shifted somewhat towards a replacement for the Huntington Jet Provost T.5 trainer, and HSA was also looking very seriously at the broader international market to replace aging trainers such as the Jet Provost, T-33, and Macchi MB.326. The market for new jet trainers was estimated at thousands of aircraft, excluding the US, which rarely "bought foreign", and the Eastern Bloc, where political barriers ruled out the sale of Western aircraft.
HSA gave their studies the designation "HS.1182". The new trainer was to have armament capability so that it could be used for weapons training, as well as for light combat duties. Early concepts envisioned a single-engine, tandem-seat aircraft with straight, low-mounted wings, with some resemblance to the Macchi MB.326 trainer.
In 1969, the British Ministry of Defense gave the ball another push by issuing requirement "AST.397" for a tandem seat, single engine, subsonic jet trainer with weapons capability and an unprecedented 6,000 hour fatigue life. This specification was open to international competition and was by no means written around the HS.1182 specification, but gradually the competitors, in the form of aircraft such as the Dassault-Dornier Alpha Jet and proposals by British Aircraft Corporation (BAC), fell out, and in October 1971 the HSA proposal was accepted. This led to a production contract early the next year for 176 trainers, with the first to be delivered in late 1976.
With the beginning of full scale development, HSA assigned Gordon Hudson as chief designer, and confusingly assigned Gordon Hodson as the assistant chief designer. Both men were ex-Folland personnel. The design was given the name "Hawk". Although traditionally British trainers had, logically but a bit stuffily, been named after educational establishments, "Hawk" was a simple name, and easy to put in flight logbooks; the RAF Staff College emblem featured the Egyptian hawk god Horus; and apparently there were officials who also thought that naming aircraft after universities was a bit stuffy, or at least wouldn't have much appeal for export sales.
The design that was finalized during development modified earlier concepts by providing a slightly swept wing, with the engine intakes mounted above the wing roots. Shoulder-mounted intakes had been considered earlier, but wind tunnel tests indicated stability problems with that configuration. In any case, the design team had good reason to feel pleased with the machine, since it had clean and elegant lines. The first "Hawk T.1", painted in snappy red and white colors, flew on 21 August 1974, with test pilot Duncan Simpson at the controls. A number of defects were discovered in flight test and corrected, but these were ordinary development and teething problems, the Hawk's design being fundamentally sound.
* The Hawk is not merely a good-looking aircraft; it is agile and handles well, with clean responsiveness to controls, and is regarded as great fun to fly. It is capable of transonic speeds in a dive, which apparently came as something of a surprise to its designers, and has long range and endurance. It is economical to operate and has an excellent safety record. The Hawk is also a relatively quiet aircraft as military jets go, and ambient cockpit noise is low, improving communications between instructor and student.

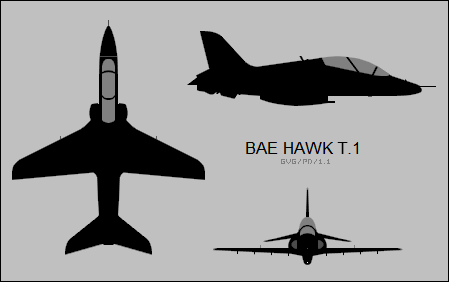

As mentioned, the Hawk is a tandem-seat trainer with a low-mounted, slightly swept wing, a single engine with inlets above the wing roots, and a conventional tail assembly. It has tricycle landing gear, with all gear assemblies featuring single wheels. The nose gear retracts forward, while the wide-track main gear hinges in the wings towards the fuselage; the nose wheel castors but is not steerable, ground steering being performed by differential braking. The aircraft is of conventional construction, built mostly of aluminum alloy, with some use of magnesium to save weight. Interestingly, the Hawk was the first British aircraft to be designed in metric instead of English units.
The wing features outboard ailerons and inboard double slotted flaps. The tailplane is all-moving. There are also twin fixed ventral fins under the tail; these were significantly shorter in early prototype machines. There is a single airbrake in the belly in front of the two ventral fins. A single airbrake cost less than twin airbrakes, but it cannot not be extended on landing. Flight controls and landing gear are powered by duplicate hydraulic systems.
The aircraft was designed to allow fit of five stores pylons, with one on the centerline and two on each wing, though RAF Hawk trainers never use more than one stores pylon on each wing. The extra attachment point on each wing was specified to permit flexibility for export sales. The inner attachment points are plumbed for drop tanks. For weapons training, the Hawk is fitted with a centerline gun pod -- similar to those fitted to British Harrier jump jets, with a single 30 millimeter Aden Mark 4 cannon with 120 rounds -- and a stores pylon under each wing for munitions. Pylon loads include practice bomb carriers and SNEB rocket pods, or a pair of 455 liter (120 US gallon) drop tanks. External load in practice is restricted to 680 kilograms (1,500 pounds).
Although the Rolls-Royce Viper 632 turbojet was initially considered as the powerplant, the final choice was the Rolls-Royce / Turbomeca Adour 151 non-afterburning turbofan with 23.15 kN (2,360 kgp / 5,200 lbf) thrust. The Adour had been developed for the Jaguar. While the Adour cost much more than the Viper, the Adour was a more modern engine that had better fuel economy; had an estimated 95% parts commonality with the afterburning Adour 102s used in the Jaguar; and was regarded, correctly as it turned out, as offering more improvement potential than the mature Viper engine, while still having been proven in the Jaguar.
The Adour engine drops out of the Hawk's belly for service, and in principle can be replaced in one and a half hours. The Hawk was built with serviceability in mind, with almost a third of the aircraft's surface covered by access panels. A Microturbo 047 Mark 2 Gas Turbine Starter / Auxiliary Power Unit (GTS/APU) is installed above the engine to permit self-starting and to assist in relights after an in-flight flameout. If the aircraft loses power in flight, a ram-air turbine automatically pops up in front of the tailfin to provide emergency electrical power.
The cockpit is very comfortable in comparison to the Gnat's, with the back seat stepped up to give the flight instructor a clear view over the top of the student's head. There is a windscreen between the front and back seat to protect the back-seater from windblast in case of a bird strike or other front-canopy failure. The canopy is single-piece and hinges open to the right. The T.1's cockpit controls are analog and relatively simple. A Ferranti ISIS gunsight is fitted.
While HSA had wanted to use the new lightweight Folland-Saab Mark 4GT
ejection seats, the RAF specified the bigger and heavier Martin-Baker Mark
10B rocket boosted zero-zero ejection seats to maintain commonality with
other RAF aircraft. The larger Martin-Baker seats required a slight fuselage
stretch from the original paper design to permit their accommodation. The
canopy is taped with miniature detonation cord to shatter it before ejection.

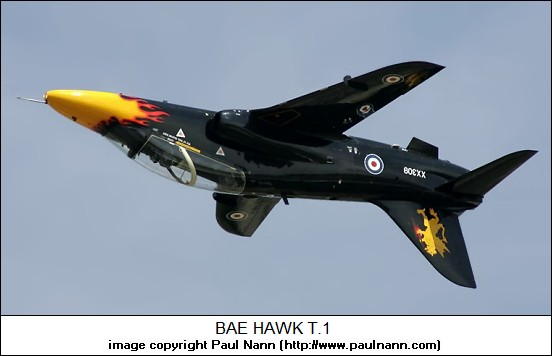

HAWK T.1:
_____________________ _________________ _______________________
spec metric english
_____________________ _________________ _______________________
wingspan 9.39 meters 30 feet 10 inches
wing area 16.69 sq_meters 179.60 sq_feet
length 11.85 meters 38 feet 11 inches
height 4 meters 13 feet 1 inch
empty weight 3,635 kilograms 8,010 pounds
max loaded weight 8,340 kilograms 18,390 pounds
maximum speed 1,040 KPH 658 MPH / 572 KT
service ceiling 15,250 meters 50,000 feet
range (internal fuel) 2,400 kilometers 1,490 MI / 1,295 NMI
_____________________ _________________ _______________________
* Only one pre-production Hawk was built. Five more were used for
development, but they were later brought up to production standard and passed
on as part of the RAF contract. HSA retained an early-production Hawk as a
company demonstrator, with this aircraft undergoing a wide range of mutations
over the years.

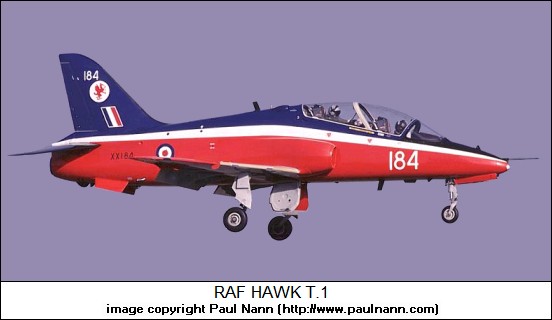

The first Hawk T.1 to be formally accepted by the RAF was delivered in November 1976, with the last delivered in March 1982. As might be expected, some deficiencies were uncovered after the Hawk went into service. Some defects, such as a nosewheel that swiveled poorly, were corrected in later development; and some economy measures, such as low-cost radios, proved unacceptable in practice and had to be upgraded later. By the time of the last delivery, the Hawk was the "BAE Hawk", since HSA had been absorbed into the British Aerospace group in the spring of 1977.
The first user was the RAF flight instruction unit at RAF Valley on the island of Anglesey off the coast of Wales, followed by other RAF organizations such as the weapons training units at RAF Brawdey and Chivenor, and also units of the Royal Navy's Fleet Air Arm. Over time, defense consolidation has tended to accumulate the Hawk at RAF Valley, which is now the largest single British user of the Hawk.
In some cases the agile Hawk is used in "aggressor" training, fitted with radar signature enhancement devices to simulate a larger aircraft. Early on, RAF Hawk trainers sported a lively blue-white-red color scheme, but now have a racy all-black color scheme.

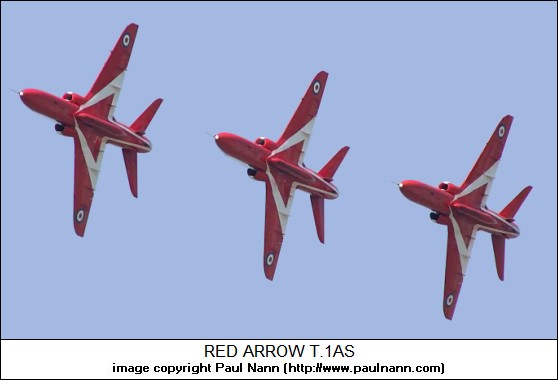

The most prominent RAF unit flying the T.1 is the "Red Arrows" flight demonstration unit, which carries on a long tradition of exciting crowds at international airshows and public exhibitions flying formations with nine red-painted Hawks. Eleven Hawks were delivered to replace the Red Arrows' Gnat T.1 in 1980, and continue in service with the team. The Hawks of the Red Arrows have minor engine modifications to improve throttle response, and carry a 318 liter capacity (84 US gallon) smoke generator pod that stores diesel oil to generate white smoke, along with dyes to color the smoke red or blue. The smoke generator pod is derived from the Aden cannon pod.
* Although the British Hawks are focused on the training mission, 88 of them were modified between 1983 and 1986 to possess a secondary air defense function through carriage of two US-built AIM-9L Sidewinder air-to-air missiles (AAMs). These Sidewinder-compatible Hawks are designated "T.1A" and include those flown by the Red Arrows. Apparently the Red Arrows fly T.1As on the rationale that if shooting were to suddenly break out, it might be wise for a group of some of the RAF's best pilots to be flying something they could fight with, though presumably not before their mounts got a quick new paint job to something less attention-getting than bright red. Other T.1As were painted in the standard RAF air defense light gray color scheme. For simplicity, this document will not further distinguish between the T.1 and the T.1A.
British Hawks have now been in service for over two decades, and unsurprisingly upgrades have been performed. In the mid-1980s, the Hawks were suffering from levels of mechanical strain and fatigue far greater than expected, leading to a re-winging program that began in 1988 and ended in 1995. The shortened fatigue life was apparently not due to any flaw in design, but changes in training practice that increased the stress on the aircraft. Another problem arose when a Hawk had a unfortunate dispute over right-of-way with a duck that demonstrated the windscreen wasn't hard enough. In 1986, an upgrade program was begun to install thicker windscreens.
The RAF has had plans to upgrade 80 T.1s with new center and rear fuselages built to the export Hawk 60 standard, discussed below, though the status of this effort is unclear. The RAF has now committed to buy a quantity of new-build Hawk trainers with modern "glass cockpits" and more powerful engines, a matter which is discussed later.
* Along with aircraft upgrades, the RAF has acquired simulator facilities to go along with their Hawks, opening the "Hawk Synthetic Training Facility" at RAF Valley in 2000. The facility is actually owned and operated by BAE Systems, with funding provided by the British government under a long-term contract arrangement.
The facility includes a cockpit procedures trainer, a Hawk instrument flight simulator, and two full-dome flight simulators. The flight simulators include high resolution displays using a satellite imagery database, and can be linked with each other or with other compatible flight simulators. The simulator system reduces the amount of actual flight hours required in a training course, and also provides a safe environment for initial aircraft orientation preparatory to actual flight time. It is also used by the Red Arrows for procedures training.
* HSA believed the Hawk would do well in the export market, projecting sales of a total of 1,000 aircraft over 20 years and scaling production capability accordingly. The "Hawk 50" export series featured an Adour 851 turbofan, an export version of the Adour 151 used in the British T.1. The Hawk 50 also had a modified tailcone, twin underwing pylons per wing, avionics improvements, the ability to carry larger drop tanks of 590 liter (156 US gallon) capacity, and was qualified for 30% greater takeoff weight than the Hawk T.1.
The major potential competitor was the Dornier-Dassault Alpha Jet, which worryingly flew a year before the Hawk prototype. The Alpha Jet beat the Hawk in a large sale to Belgium, and in smaller sales to Togo and the Ivory Coast. The Alpha Jet appeared to have a lead at the time, and as a result HSA's engineering and marketing departments were not on good terms.
The Hawk's first breakthrough in international sales was in December 1977, when Finland placed an order for 50 "Hawk 51s" to replace their Fouga Magister trainers. The Finnish Hawk 51s had a unique avionics fit, used a Saab RS-2 gunsight, and were fitted with a VKT 12.7 millimeter (0.50 caliber) gun pod instead of the 30 millimeter Aden cannon pod carried by the T.1. Interestingly, Finnish Hawks are in some cases fitted with Russian R-60 (AA-8 Aphid) heat-seeking AAMs; and they are also used for reconnaissance, carrying Vinten optical-infrared camera pods.
The first four Hawks in the Finnish order were built in the UK, with the other 46 assembled from kits by Valmet of Finland. The Finns bought seven more Hawks in 1990 to replace attrition. These new aircraft had minor refinements and were designated "Hawk 51A". All seven were built in the UK. In 2007, as discussed below, the Finns obtained 18 hand-me-down Hawks from Switzerland. Following the turn of the century the Finnish Hawks were clearly showing their age, and in 2006 a program was begun to update 30 of them, with modern avionics and a "glass cockpit". The first updated machine performed its initial flight in the fall of 2008.
In any case, the big 1977 Finnish order seemed to close the gap between the Hawk and the Alpha Jet, but in 1978 the Alpha Jet won orders in Morocco and Nigeria. However, BAE kept pace with a sale of twelve "Hawk 52s" for Kenya and eight "Hawk 53s" for Indonesia. The Indonesians eventually bought a total of 20 Hawks in four batches. The Kenyan Hawks were the first of the breed to be fitted with a drag chute, to reduce landing roll under "hot and high" conditions.
* In 1979, BAE decided to come up with an improved baseline "Hawk 60" export model, featuring the uprated Adour 861, with 25.4 kN (2,590 kgp / 5,710 lbf) thrust, and a slightly improved wing. The first sale was in early 1981, when Zimbabwe ordered eight Hawk 60s. These aircraft featured an enlarged drag chute. Only a few days after the first four arrived in country, however, insurgents threw explosive charges down their air intakes. One Hawk was completely wrecked; another was repaired in Zimbabwe; and the other two had to be shipped back to the UK for rebuild. In 1990, Zimbabwe ordered five improved "Hawk 60As".
In 1981, Dubai ordered eight "Hawk 61s" for training, light strike, and reconnaissance, using Vinten camera pods for the reconnaissance role. Dubai later bought an additional Hawk 61 as a replacement. These Hawk 61s were cleared for operation with French Matra Magic heatseeking AAMs. In 1982, Venezuela placed a large order for "Hawk 62s", but this deal fell through when the Falklands War broke out.
* After the Dubai sale, the Hawk proved very popular with other Middle Eastern countries. Abu Dhabi ordered 16 "Hawk 63s" in 1983, of which 14 were later upgraded to the "Hawk 63A" standard, featuring the further uprated Adour 871 engine with 26.24 kN (2,675 kgp / 5,900 lbf) thrust and a "combat wing", both of which were developed for the Hawk 100 and 200 operational combat variants of the Hawk series, described later. Abu Dhabi also ordered five "Hawk 63Cs" that were similar to the Hawk 63A, with deliveries in 1995.
Kuwait bought 12 "Hawk 64s" in 1983, which were cleared for operation with four AIM-9L Sidewinder AAMs. When Iraq invaded Kuwait in 1990, six of the Kuwaiti Hawks escaped to Bahrain and six were captured by the Iraqis. The Iraqis returned the six Hawks after their defeat in the Gulf War. The captured Hawks were unsurprisingly a little worse for wear after being in Iraqi custody, but they were refurbished with help from BAE and returned to flight status.
In 1985, Saudi Arabia ordered 30 "Hawk 65s", with improved wheels and brakes, followed in 1994 by an order for 20 Hawk 65As, which apparently were fitted with the Adour 871 and the combat wing. They fly with the Royal Saudi Air Force flight demonstration team, in very pretty green and white colors.
* Switzerland bought 20 "Hawk 66s" in 1987. Although this wasn't the biggest Hawk purchase by any means, it was a significant sale for BAE in terms of firmly establishing the Hawk's reputation. With the Swiss, no one could seriously suspect that corrupt practices had played any role in the aircraft's selection, and the Swiss tend to buy military aircraft as a long-term investment, to put it mildly, having been the very last military users of such classics as the Hawker Hunter and the De Havilland Vampire. In fact, the Hawks were bought to replace Vampire T.55 trainers. If the Swiss bought the Hawk, everyone knew that they had thought the matter over very carefully first.
The first aircraft in the Swiss batch was built in the UK and delivered, but the remainder were provided as kits that were assembled by the Swiss Federal Aircraft Factory in Emmen. They featured an Adour 861A-03 engine, with minor modifications relative to the standard Adour 861 to meet Swiss Air Force requirements. The Swiss Hawks provide advanced flight training after students acquire basic flight skills in Pilatus PC-7 turboprop trainers. The Swiss Hawks are painted in a crisp red and white scheme, with the Swiss white cross insignia bringing a Swiss Army knife to mind, and so an informal label of "Swiss Army Jet". The Swiss apparently did not find the Hawk an entirely satisfactory investment; they tend to hang on to their gear for an extremely long time, but the fleet was put up for sale in 2002. As mentioned above, Finland bought 18 Swiss Hawks in 2007.
The Swiss order was followed in 1990 by a South Korean order for 20 "Hawk 67s", which featured a steerable nosewheel and a long nose. The long nose was derived from the Hawk 100, but does not accommodate the sensor suite of the Hawk 100, instead storing additional avionics and having a rounded end. The long, rounded nose gives the Hawk 67 a clearly unique appearance among all Hawk variants.
* If the Swiss purchase of the Hawk 66 was a promotional opportunity for BAE, it was overshadowed by an even more impressive win through a sale to the US Navy (USN) of a Hawk variant, the "T-45 Goshawk", for the demanding role of carrier-based flight training. Not only was the USN a customer with generally high standards, but the Hawk had to go up against powerful American competitors who had a political edge, and against the general disinclination of the US military to buy foreign-made systems.
The "Buy American" bias meant that BAE needed to have an American partner to front the deal, but fortunately BAE already had such a potential partner the form of McDonnell Douglas Corporation (MDD -- now absorbed by Boeing, but the name MDD will be used here to avoid confusion). HSA had acquired a good relationship with MDD with license production of the Harrier, and this relationship carried over when HSA was swallowed up in BAE.
* In 1975, the USN began a study for a new carrier-capable jet trainer to replace the T-2C Buckeye and TA-4J Skyhawk. Capability was important, but procurement, operational, and life-cycle cost were emphasized. BAE pitched the Hawk to the USN in 1978, leading to a formal partnership agreement with MDD in 1980, and selection of the Hawk from a wide field of competitors in 1981.
However, the Hawk had never really been designed for carrier operations, and the T-45 Goshawk, as the USN trainer was designated, was by no means just another tweaky variant of the Hawk. Carrier operation meant more robust and wider landing gear with catapult attachment; an arresting hook; good low-speed flight characteristics; and other substantial changes. The changes were so extensive that the first Goshawk prototype did not fly until 1988, the same year a production contract was awarded. USN evaluation of the initial prototype resulted in a long list of deficiencies that had to be corrected. Most of the items were nitpicky, but there was a small set of critical difficulties, which became known as "the Big Five".
Further delays were introduced by a decision to move production from the Douglas plant in California to the McDonnell plant in Saint Louis, Missouri. Carrier trials did not take place until 1991. Even then, the aircraft's troubles were not over, with one being lost in 1992 in a very wild landing caused by a landing gear defect, the pilot ejecting safely. All Goshawk prototypes were grounded until the problem was properly reviewed. Flight instruction with the Goshawk did not begin until 1994.
* The Goshawk is still clearly a Hawk, but it is a considerably modified Hawk with clearly distinctive features. In the final production form, the changes include:
Engine fit for the Goshawk turned out to be a complicated issue.
Lower-thrust versions of the Adour were considered at first to provide longer
engine life, but unsurprisingly the changes made to the Hawk to produce the
Goshawk substantially increased weight, and so the USN opted for a more
powerful engine.
T-45 GOSHAWK:
_____________________ _________________ _______________________
wingspan 9.39 meters 30 feet 10 inches
wing area 16.69 sq_meters 179.60 sq_feet
length 11.97 meters 39 feet 3 inches
height 4.27 meters 14 feet
empty weight 4,265 kilograms 9,400 pounds
max loaded weight 5,790 kilograms 12,760 pounds
maximum speed 1,000 KPH 620 MPH / 540 KT
service ceiling 12,875 meters 42,250 feet
range (internal fuel) 1,850 kilometers 1,150 MI / 1,000 NMI
_____________________ _________________ _______________________
In 1991, very late in the Hawk's development, the US Congress attempted to
push the Navy to adopt the Garrett F124-GA100 turbofan engine, in order to
steer more business to American industry. On paper, the F124 was a much more
modern engine than the Adour, offering a higher thrust to weight ratio,
longer life, and other advantages -- but the phrase "on paper" was critical,
since no aircraft had been fitted with the new Garrett engine. Navy Goshawk
program officials were appalled at the prospect of having to take another
"zig" in a development program that had already had its fair share of "zags".
After intense debate, the Secretary of the Navy ruled that the Goshawk would
keep the Adour.
Interestingly, some sources say the Goshawk is not intended for weapons training and is never fitted with a gun pack or stores pylons. This is borne out by pictures of the aircraft, none of which seem to show such kit, but other sources say the Goshawk was qualified for stores carriage and release during development. The two facts may not be inconsistent, since it is logical that even if the USN didn't want to use the T-45 for weapons training, the service may still have wanted the capability just in case it was needed at some time in the future.

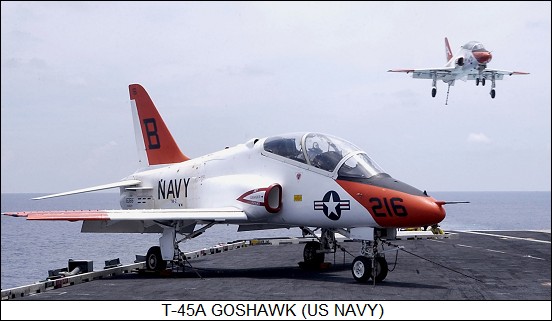

* In flight, the Goshawk looks much like any other Hawk trainer, but on carrier approach, with everything "down and dirty", the Goshawk looks very much a carrier aircraft, with its wide undercarriage spread open, leading-edge slats out, twin airbrakes extended, and arresting hook hanging down.
The Goshawk is built with MDD as the prime contractor, BAE serving as the airframe subcontractor, and Rolls-Royce serving as the engine subcontractor. MDD provides a "complete package" for Goshawk operations in the form of the "T-45 Training System", which includes maintenance, service, and a Hughes simulation system. Despite the delays and problems, the USN is very pleased with the end product. The very severity of the evaluation ensured that the Goshawk thoroughly satisfied their requirements.
The USN originally expected to acquire 302 Goshawks, but given the end of the Cold War the total is currently scheduled to 223. Deliveries have been running at about a dozen aircraft a year, with 206 delivered by late 2007.
The first 83 production Goshawks were T-45As, which were followed in 1997 by the "T-45C" with a digital glass cockpit layout featuring twin multifunction displays (MFDs); a head-up display (HUD); a Global Positioning System (GPS) satellite navigation receiver; and a MIL-STD 1553B digital data bus. The Goshawk was originally to have been fitted with a glass cockpit, but the USN had to drop that plan due to cost constraints. Later, the glass cockpit requirement was revived and implemented as a "Cockpit 21" effort in 1994, leading to the T-45C. Existing T-45As have been upgraded to the T-45C standard.
The reason why the variant designation jumped from T-45A to T-45C was because the USN had considered purchase of a proposed "T-45B" variant for a time, which would have been basically a conventional Hawk with a USN cockpit and no carrier capability. The USN had wanted the T-45B to get an earlier training capability, but abandoned the idea in 1984.
* By the way, the reason the T-45 was given the name "Goshawk" instead of retaining the name "Hawk" was not out of any nationalistic desire to differ with the British; after all, the US adopted the Harrier from the British without a name change. The T-45 was named "Goshawk" to avoid confusion with the Hawk surface to air missile, another item in the US military inventory. Anybody who's ever been in any military organization knows that if a paperwork screwup is possible it will happen, and taking measures to avoid such difficulties is prudent.
* The Hawk had originally been designed as a trainer with a weapons training capability that could also be used as a light combat aircraft, but wasn't really suited for demanding combat duties. By 1981, BAE had investigated what needed to be done to turn the Hawk into a more formidable warbird, resulting in the "Enhanced Ground Attack (EGA) Hawk", which featured combat avionics borrowed from the US General Dynamics F-16 Fighting Falcon. BAE offered this variant to Venezuela in 1981, but the deal fell through.
However, the idea wasn't dead by any means. The EGA Hawk emerged as the "Hawk 100" the next year, which featured:
A wide range of munitions were either qualified or considered for qualification with the Hawk 100, including medium-range AAMs missiles such as the Sky Flash or even the AIM-120 AMRAAM; the Maverick air to surface missile; the Sea Eagle antiship missile; and the Marconi Sting Ray homing torpedo.

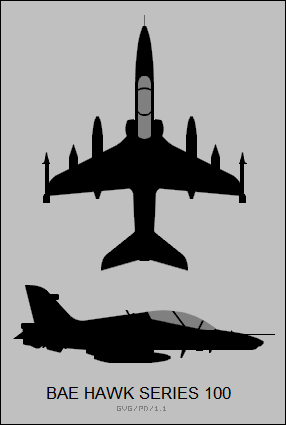

The Hawk 100 demonstrator first flew in October 1987. While the Hawk 100 was at least as much warbird as trainer, BAE had also been considering, on an off-and-on basis, a single-seat Hawk that was all warbird, which emerged as the "Hawk 200". The first Hawk 200 demonstrator actually flew in May 1986, well before the Hawk 100 demonstrator, but was lost two months later in an accident that killed test pilot Jim Hawkins, who either became disoriented or ironically blacked out while demonstrating the aircraft's agility.

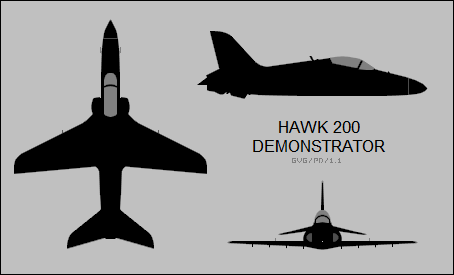

The Hawk 200 has the Adour 871 engine, combat wing, and some of the other combat kit of the Hawk 100, but along with the single seat configuration, which resulted in an entirely new fuselage from the cockpit forward, also features a still taller tailfin; an optional fixed inflight refueling probe; and the Northrop-Grumman AN/APG-66H pulse-Doppler X-band multimode radar, with ten air-to-air and ten air-to-surface modes, derived from the AN/APG-66 used on the F-16A/B.
Cockpit layout is similar to that of the Hawk 100 to ease operational conversion. Interestingly, twin 25 millimeter Aden cannon were built into the nose of the Hawk 200 demonstrator, but production Hawk 200s use the 30 millimeter Aden cannon pack instead. It appears the 25 millimeter Aden cannon ran into significant development problems.
* Abu Dhabi was the first customer for the new, more warlike Hawks, placing an order of 18 "Hawk 102s" in 1990, with deliveries in 1993. In 1990, Oman bought a batch of four "Hawk 103s" and twelve "Hawk 203s", which were also delivered in 1993.

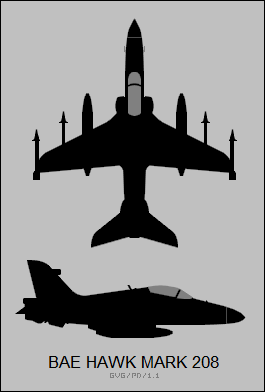

Malaysia ordered ten "Hawk 108s" and eighteen "Hawk 208s" in late 1990, which were delivered from 1993 through 1995. The Hawk 208s were the first Hawks to be sold with a flight refueling probe. In 1993, Indonesia ordered eight "Hawk 109s" and sixteen "Hawk 209s", with an option for 16 more Hawk 209s, which was exercised. All 40 new Indonesian Hawks were delivered by 1998.

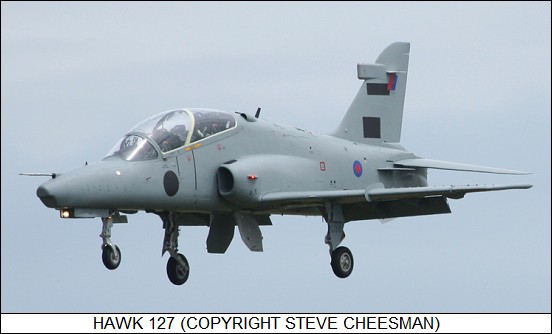

In 1993, Australia selected the "Hawk 127" for an advanced fighter trainer requirement and ordered 33, with the first 12 to be delivered from the UK and the rest assembled in Australia from kits. Deliveries were in 2000 and 2001. The Hawk 127 features cockpit details compatible with the Boeing F/A-18 Hornet to provide training for Australian Hornet pilots. Interestingly, one of the losing competitors for this deal was the MDD T-45 Goshawk.
In a particularly intriguing deal, in 1997 the Hawk was selected for use in a Canadian "training for hire" scheme. The "NATO Flying Training in Canada (NFTC)" program is a joint venture of the Canadian government and Bombardier Aerospace Corporation, and offers its services to friendly governments on a contract basis. 18 "Hawk 115" trainers were initially ordered for NFTC, with an additional three trainers ordered in 2000 when Singapore signed up for the program. These Hawks are painted in a striking dark blue color scheme, with tail insignia consisting of a red Canadian maple leaf overlapped by a NATO four-pointed star. BAE has signed an extended contract to provide repair and overhaul support for these aircraft. NFTC also operates 24 turboprop tandem seat Raytheon T-6A-1 Harvard II trainers for introductory flight instruction.
* BAE Systems went on to develop an improved trainer variant derived from the Australian Hawk 127 with the designation "Lead-In Fighter Trainer (LIFT)". The Hawk LIFT is intended to provide training for new-generation combat aircraft such as the Eurofighter Typhoon or Saab Gripen, and features substantially improved cockpit and avionics.
The Hawk LIFT's cockpit has three color flat-panel MFDs, HOTAS controls, and
a HUD. Cockpit systems will be modified to suit the customer, for example
providing HUD symbology consistent with the front-line aircraft for which
flight training is conducted. The Hawk LIFT also features a GPS-INS
navigation system; a new AlliedSignal APU; an airframe "health & usage
monitoring system (HUMS)"; two mission computers; and an optional inflight
refueling probe. BAE Systems claims that the updated aircraft will have four
times the fatigue life of the Hawk T.1.
HAWK LIFT:
_____________________ _________________ _______________________
wingspan * 9.94 meters 32 feet 7 inches
wing area 16.7 sq_meters 179.67 sq_feet
length 12.43 meters 40 feet 9 inches
height 3.98 meters 13 feet 1 inch
empty weight 4,400 kilograms 9,700 pounds
max loaded weight 9,100 kilograms 20,065 pounds
maximum speed 1,000 KPH 620 MPH / 540 KT
service ceiling 13,565 meters 44,500 feet
range 2,520 kilometers 1,565 MI / 1,360 NMI
_____________________ _________________ _______________________
* Wingspan includes Sidewinder missiles.
Rolls-Royce is also offering an Adour 900 that could be used by Hawk LIFT.
The Adour 900 has exactly the same thrust as the existing Adour 871, but the
Adour 900 has "full authority digital engine controls (FADEC)" and twice the
lifetime of the Adour 871. Interestingly, Rolls-Royce was partly pushed
towards the Adour 900 by the Garrett F124 flotch that arose late in the T-45
Goshawk's development program.
South Africa signed a deal with BAE in 1998 for 24 Hawk LIFTs. Sales went slow for a while after that, but in early 2003 Bahrain signed a deal for six Hawk 127 trainers. This was followed in the summer of 2003 by a bigger deal, when the British government also decided to buy new "Hawk 128" trainers, another variant of the Hawk LIFT series, to complement the current Hawk 1/1A machines.
The old Hawks were still perfectly airworthy, but they had antique analog cockpits. The new machines had modern digital cockpits, making them more appropriate as trainers for RAF Eurofighter pilots, and have uprated and modernized Adour 951 engines. The initial order was for 20 aircraft, later increased to a total of 28, with initial deliveries as the "Hawk T.2" in 2010.
The British buy of new Hawks also knocked down the last obstacles to a buy of 66 Hawk "Advanced Jet Trainers (AJTs)" by the Indian Air Force (IAF) to replace IAF Hindustan Aerospace LTD (HAL) Kiran and PZL Iskra trainers. The deal had dragged out for almost two decades, being most recently delayed by sanctions imposed on India after that nation conducted nuclear tests in 1998, and then by war tensions with Pakistan. The first 24 were built by BAE, with the remaining 42 license-built by HAL in India. First deliveries of BAE-built aircraft were in late 2007, with the first HAL-built machine delivered in the summer of 2008. All 24 British-made machines were delivered by the end of 2009, but there were delays in delivery of the HAL-built aircraft.
While the original projections of sales of 1,000 Hawks over 20 years didn't materialize, the actual sales have been nothing to be unhappy about, and in fact sales of the Hawk far outpaced those of its early competitor, the Alpha Jet, which is now out of production while Hawks continue to roll off the manufacturing line. Furthermore, with continued improvements such as the Hawk LIFT, the Hawk remains a very competitive aircraft for future sales.
* The following table gives a Hawk production summary, with entries
providing the variant, number of new-build aircraft, and comments including
user description. The T-45 Goshawk is not included in the list.
_____________________________________________________________________
T.1 176 UK Hawks.
T.1A - 88 T.1s upgraded with Sidewinder capability.
Hawk 50 50 Finnish Hawks with strike / recce capability.
Hawk 51 7 Improved replacements for Finnish Hawks 50s.
Hawk 52 12 Kenyan Hawks, with drag chute.
Hawk 53 20 Indonesian Hawks.
Hawk 60 8 Hawks for Zimbabwe.
Hawk 60A 5 Improved Hawks for Zimbabwe.
Hawk 61 8 Hawks for Dubai with strike / recce capability.
Hawk 62 - Proposed Hawks for Venezuela.
Hawk 63 16 Hawks for Abu Dhabi.
Hawk 63A - 14 Abu Dhabi Hawks updated with new engine and wing.
Hawk 63C 5 Hawks for Abu Dhabi, similar to Hawk 63A.
Hawk 64 12 Kuwaiti Hawks, with four-Sidewinder fit.
Hawk 65 30 Saudi Hawks.
Hawk 65A 20 Saudi Hawks with improved engine and wing.
Hawk 66 20 Swiss Hawks.
Hawk 67 20 South Korean Hawks with long nose.
Hawk 102 18 Hawk 100s for Abu Dhabi.
Hawk 103 4 Omani Hawk 100s.
Hawk 108 10 Malaysian Hawk 100s,
Hawk 109 8 Indonesian Hawk 100s.
Hawk 115 21 Hawk 100s for Canadian international training program.
Hawk 127 33 Australian Hawk 100s with advanced cockpit.
Hawk 127 6 Hawk 100s for Bahrain.
Hawk 128 28 Hawk 100s for the UK, AKA Hawk T.2.
Hawk AJT 66 Indian Hawk 100s.
Hawk 203 12 Single-seat Hawk 200s for Oman.
Hawk 208 18 Malaysian single-seat Hawk 200s.
Hawk 209 32 Indonesian single-seat Hawk 200s.
_____________________________________________________________________
665 subtotal BAE Hawks
206 subtotal T-45 Goshawks
_____________________________________________________________________
871 TOTAL
_____________________________________________________________________
